- Size: 12
- Place of Origin: China
- Brand Name: philicam multitech
- Model Number: LF-PTP2
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

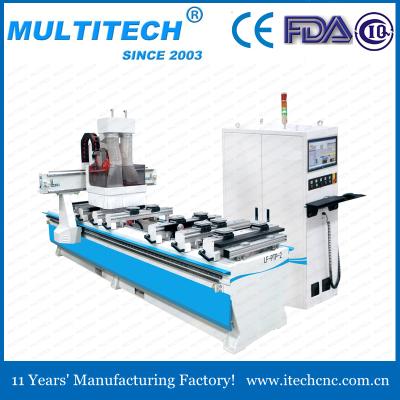

Here are some parts of wardrobe door making cnc machine:
1) wardrobe door making cnc machine adopts imported Italy name brand (HSD) big power air cooled engine, with high precision, long life, stable running and the beginning quality is good, big distance. It can fully exert the high advantage of the machine and has high efficiency.
2) wardrobe door making cnc machine adopts the Taiwan high quality Syntech control system, has high and stable quality, good maintenance. It can control and complete the multiface 3D process and can process the 3D engraving and cutting.
3) wardrobe door making cnc machine adopts Japan YASKAWA servo motor and driver, greater accuracy and stability.
4) wardrobe door making cnc machine adopts best quality Delta inverter,the inverter can control the spindle rotate speed very well.
(6). wardrobe door making cnc machine has high power HSD gang drilling,makes your work high quality high precision.
Technical parameters of wardrobe door making cnc machine:
Model | LF-PTP2 | |
Working travel | X axis | 1300mm |
Y axis | 2500mm | |
Z axis | 200mm | |
Table structure | Vacuum table | |
orbit | HIWIN or PMI square rails | |
Transmission type | X,Y ,Z Ball Screw | |
Working accuracy | ±0.02 | |
Repositioning accuracy | ±0.03 | |
Max air move speed | 25000mm/min | |
Max working speed | 12000mm/min | |
spindle | Type of cooling | Imported Italian HSD air cooling spindle |
power | 9KW | |
speed | 0-18000r/min | |
CNC Boring heads | imported from Italy | |
inverter | Delta inverter | |
Drive system | Japan YASKAWA servo | |
Command code | G code | |
Control system | Japan SYNTEC System | |
Oiling system | Automatic | |
Working voltage | AC380V/3PH/60HZ(Optional:220V)
|
Mainly application of wardrobe door making cnc machine:
1. Furniture: wooden doors, cabinets,wardrobe,Plate, office and wood furniture, tables, chair, doors and
windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, wine cabinet,guita, instruments.
3. Plate processing: insulation part, plastic chemical components. PCB, inner body of car, bowing tracks, stairs, board, epoxy resin, ABS, PP,PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial, stone, organic glass, plastic and soft metalssuch as copper, aluminum plate engraving and milling process.
Payment terms:
1 You can pay 30% by T/T(bank transfer) in advance ,when we finished the machine ready for shipping ,you pay the 70% left.
2 You can pay through payment security of Alibaba(third party payment terms),before you got the machine your money is safe in Alibaba.
Delivery time:
7-10 days after we get your deposit we will deliver the machine to you.
Our after sale service:
1.24 months quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
