- Size: 10
- Place of Origin: China
- Brand Name: philicam multitech
- Model Number: FB1530-750W
- Weight: 2000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

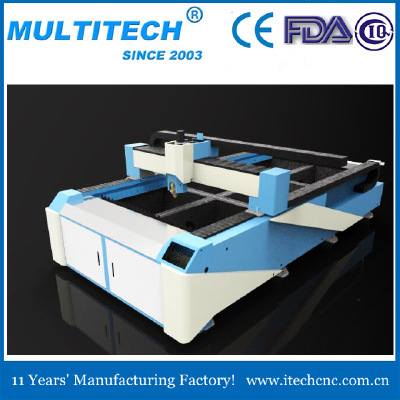

Some features of 750w fiber laser cutting machine for metal plate / pipe:
1. 750w fiber laser cutting machine for metal plate / pipe adopts Cypcut control system,ensure cutting high quality and high speed.
2.Stability and reliability for light path system.
3.Humanizing design, convenient operation. You no need to pay much money to learn operation.
4.High performance price ratio, low operating cost
5.High cutting efficiency and high quality, no noisy. Cutting speed is 100 times larger than the YAG cut. Small heat influence area, cutting seam smooth and no deformation, post treatment is not needed
6.High precision serve motor, lead screw and guide ways imported ensure the high efficiency and accuracy, increasing the stability and reliability greatly.
7.Suit many varieties of small, middle batch and mass production.
Mainly application of 750w fiber laser cutting machine for metal plate / pipe:
Materials: stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, aluminum, aluminium, copper, brass, bronze, gold, silver, titanium plates, metal sheets, metal plates, metal tubes and pipes, etc.
Parameters of 750w fiber laser cutting machine for metal plate / pipe:
NO. | Model | FB1530-750W |
1 | Max working area | 1500x3000mm |
2 | Laser medium | fiber laser |
3 | Laser power | 750w |
4 | Laser wave length | 1064nm |
5 | Laser pulse frequency | 0.1-500Hz |
6 | Width of pulse | 0.2- 20ms |
7 | Min line width | ≤0.15mm |
8 | Positon accuracy | 0.03mm/m |
9 | Repetition accuracy | 0.02mm/m |
10 | Focus method | Following and automatic adjust focus |
11 | Guide rail | Hiwin from Taiwan |
12 | Transmission method | TBI Ball screw |
13 | Drive system | YASKAWA Servo motor and drivers |
14 | Cooling system | exhaust pump |
15 | Control system | Bochu |
16 | Control software | Cypcut |
17 | Graphic format support | BMP,HPGL,PLT,DST and AL,etc |
18 | Working environment | Temperature:0-45°C, |
19 | Equipment power | 0-20kw |
20 | Power supply | 380v/50Hz |
Guarantee & after sales Service:
@If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
@If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
Payment terms
1 You can pay 30% by T/T(bank transfer) in advance ,when we finished the machine ready for shipping ,you pay the 70% left.
2 You can pay through payment security of Alibaba(third party payment terms).
Delivery time
7-10 working days we will deliver the machine to you after we got your deposit.
Welcome to contact us:
Name:Linda Lv
Whats app/Telephone: 86-15550018652
Skype:itechcnc05
Wechat:pp521sss
QQ:3145681508
E-mail:export05@itechcnc.com
- Size: 10
- Place of Origin: China
- Brand Name: philicam multitech
- Model Number: FB1530-750W
- Weight: 2000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Parameters of 750w fiber laser cutting machine for metal plate / pipe:
NO. | Model | FB1530-750W |
1 | Max working area | 1500x3000mm |
2 | Laser medium | fiber laser |
3 | Laser power | 750w |
4 | Laser wave length | 1064nm |
5 | Laser pulse frequency | 0.1-500Hz |
6 | Width of pulse | 0.2- 20ms |
7 | Min line width | ≤0.15mm |
8 | Positon accuracy | 0.03mm/m |
9 | Repetition accuracy | 0.02mm/m |
10 | Focus method | Following and automatic adjust focus |
11 | Guide rail | Hiwin from Taiwan |
12 | Transmission method | TBI Ball screw |
13 | Drive system | YASKAWA Servo motor and drivers |
14 | Cooling system | exhaust pump |
15 | Control system | Bochu |
16 | Control software | Cypcut |
17 | Graphic format support | BMP,HPGL,PLT,DST and AL,etc |
18 | Working environment | Temperature:0-45°C, |
19 | Equipment power | 0-20kw |
20 | Power supply | 380v/50Hz |
