- Size: 5
- Place of Origin: Jinan
- Brand Name: philicam multitech
- Model Number: 1325 LF-K3
- Weight: 2500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

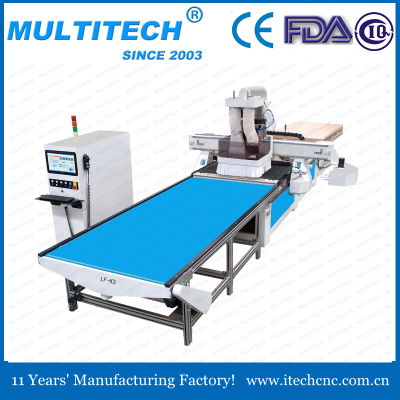

Here are some features of cabinet door cnc router:
1) cabinet door cnc router adopts imported Italy name brand (HSD) big power air cooled engine, with high precision, long life, stable running and the beginning quality is good, big distance. It can fully exert the high advantage of the machine and has high efficiency.
2) cabinet door cnc router line has automatic knife changing structure, it can change the needed knife freely, the special knife board, can compensate the error of the length between the knives. The knife changing time is only 8 seconds. The machine has 8 sets of knives attached and you can order the more knives.
3) cabinet door cnc router line adopts the Taiwan high Syntech control system, has high and stable quality, good maintenance. It can control and complete the multiface 3D process and can process the 3D engraving and cutting.
4) cabinet door cnc router adopts Japan YASKAWA servo motor and driver, greater accuracy and stability.
5) cabinet door cnc router adopts famous FAM boring head. Drilling hinges and door lock holes automatic,save time and labor force.
6) cabinet door cnc router can auto loading and unloading.
Mainly application of cabinet door cnc router:
1. Furniture: wooden doors, cabinets,wardrobe,Plate, office and wood furniture, tables, chair, doors and
windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, wine cabinet,
instruments.
3. Plate processing: insulation part, plastic chemical components. PCB, inner body of car, bowing tracks, stairs, board, epoxy resin, ABS, PP,PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial, stone, organic glass, plastic and soft metalssuch as copper, aluminum plate engraving and milling process.
Payment terms:
1 You can pay 30% by T/T(bank transfer) in advance ,when we finished the machine ready for shipping ,you pay the 70% left.
2 You can pay through payment security of Alibaba(third party payment terms),before you got the machine your money is safe in Alibaba.
Delivery time:
7-10 days after we get your deposit we will deliver the machine to you.
Our after sale service:
1.24 months quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are interest in our machine,welcome to contact with us.
Name:Linda Lv
Skype:itechcnc05
Whats app/Telephone: 86-15550018652
Wechat:pp521sss
QQ:3145681508
- Size: 5
- Place of Origin: Jinan
- Brand Name: philicam multitech
- Model Number: 1325 LF-K3
- Weight: 2500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Technical parameters of cabinet door cnc router:
Model | 1325 LF-K3 |
Working travel | 1300*2500*200mm |
Table structure | vacuum table |
Guide rail | Taiwan HIWIN/PMI square guide rail 25 |
XY axis transmission | rack&pinion transmission |
Z axis | Taiwan TBI ball screw transmission |
Working precision | ±0.02mm |
Repositioning precision | ±0.03mm |
Max air move speed | 500000mm/min |
Max working speed | 150000mm/min |
Controlling system | Syntec control System |
Spindle | Imported Italy HSD atc air cooling spindle |
Spindle power | 9kw |
Spindle rotating speed | 0-18000rpm |
CNC boring head | 5 4 HSD vertical drilling unit |
Inverter | Delta inverter |
Driving system | Japan YASKAWA servo motor with reducer |
Command | G code |
Oiling system | Automatic |
Working voltage | AC 380v/3phase(220v is optional) |
Function | Automatic loading and unloading device,automatic label function |
Dust collector | 2 units of double bags dust collector |
Vacuum pump | 7.5kw air vacuum pump |
